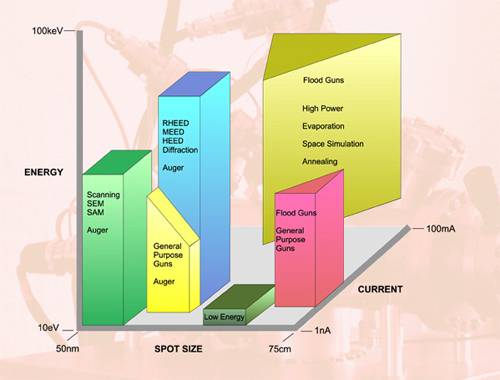

Click on columns for more information

STAIB Electron Sources

Electron sources manufactured by STAIB Instruments are compact, light weight, high performance instruments. The state-of-the-art electron optical design is unique and provides many important benefits.

  • Variable spot size, high beam current at the sample, and large working distance.
  • Highly stable voltage and current supplies, within 10-4 or better, current, and beam position.
  • Unique electron optical design that is factory pre-aligned and needs no on-site adjustments. Final focusing and beam positioning (X, Y) are easily accomplished, manually or through a remote control box, over the entire operational current and voltage range of the source.
  • Low cathode temperature ensures long life and compatibility with pressures up to 10-4 torr (up to 10-2 torr with the efficient differential pumping option). Cathode assemblies are field replaceable without disturbing the electron source assembly.
  • Unique remote control of beam focus, intensity, and position ensures ease of use, allowing these adjustments at the chamber rather than at the instrument rack.
  • Outgassing from the source is not detectable in typical UHV systems.
  • Optional beam blanking and fast pulsing, to synchronize the beam or minimize the load on the sample.
  • Computer control plug allows gun parameters to be computer controlled.
  • Built-in diagnostic capabilities.
  • Technical support of the equipment is provided by phone and fax, free of charge.

Electron sources are available from STAIB Instruments across the range of 10 eV - 125 keV. Some models may be upgraded for higher energy and additional options. Special modifications are available to meet the needs of a given experiment. Please contact our office for further information.
